Construction laser

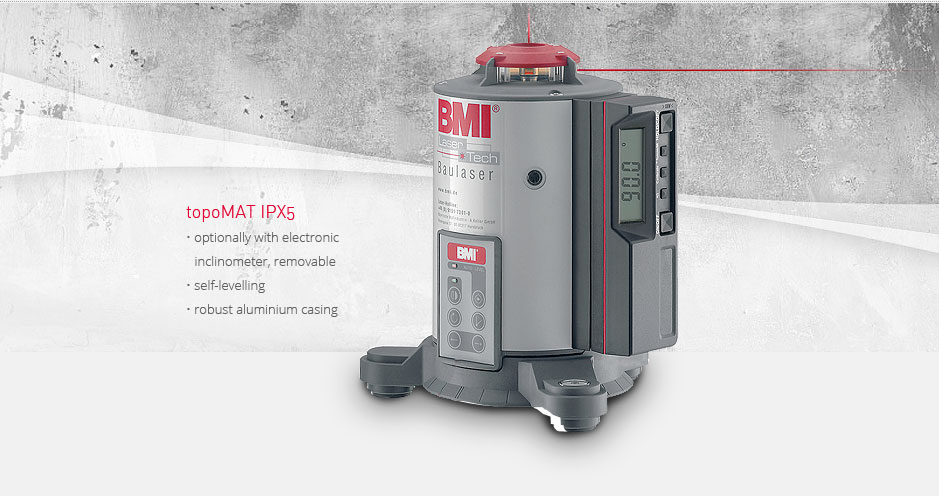

topoMAT IPX5

Needs no more than one person to take care of levelling jobs: Efficient, automatic and safe in all situations. A universal levelling system for various jobs. The electronic inclination measure allows fast measuring of inclinations between 0 and 90 degrees. The angle measure is detachable and can be used solo. The topoMAT is also available without the inclinometer.

Precision and safety
  • As a result of the automatic self-levelling function with an accuracy of ± 2.6 mm/30 m
  • ESP - automatic laserstop function in case of impact or other changes of position!

LASER operating modes
  • Rotation – with 600, 300 and 100 rotations per minute – to choose the optimum task-suited rotation speed!
  • Line-mode – with settings of 15, 30, or 45 degrees – to create visible laser lines or different lengths especially inside buildings!
  • Dot-line mode – to the right or left – optional for the slow or fast retracing of laser dots or laser lines – function can be enabled directly at the laser or via remote control!
  • Permanent angle through the firmly connected beam splitting prism.

No time-consuming modification

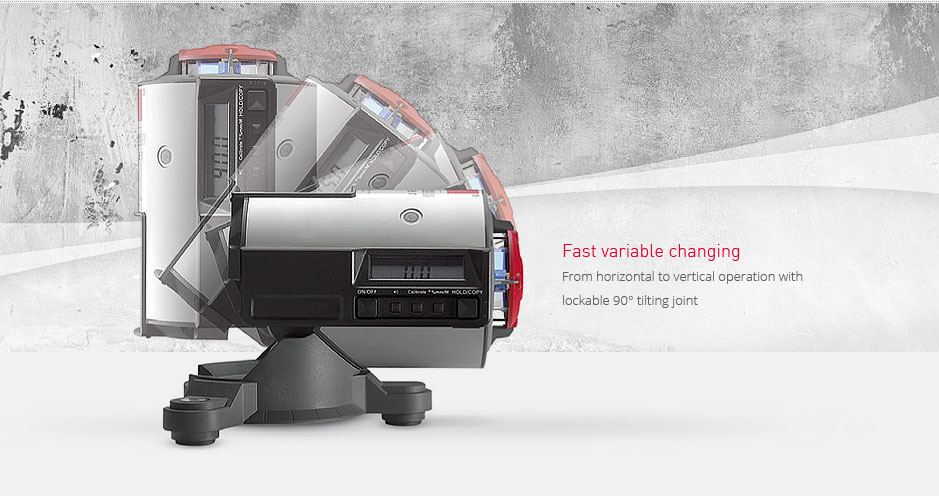

Fast variable changing from horizontal to vertical operation with lockable 90° tilting joint.

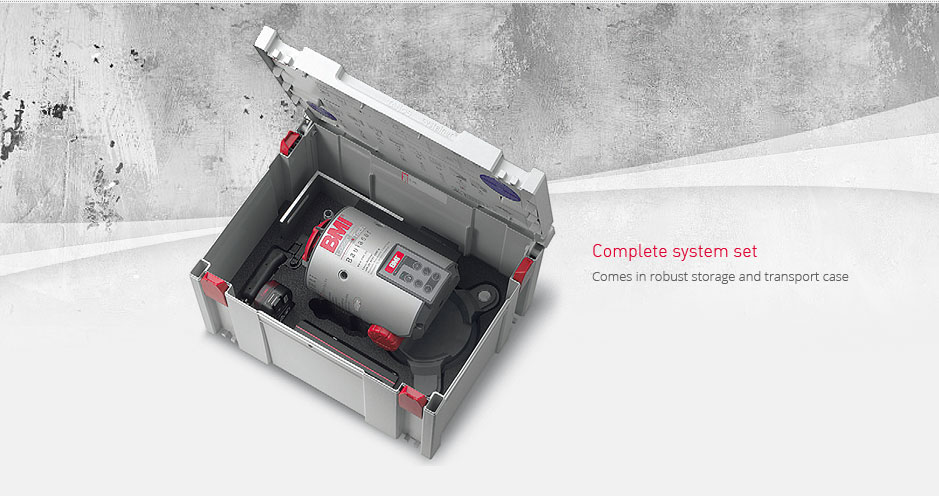

Complete laser set comes in robust storage and transport case
  • Rotating laser topoMAT IPX5 • Electronic inclinometer

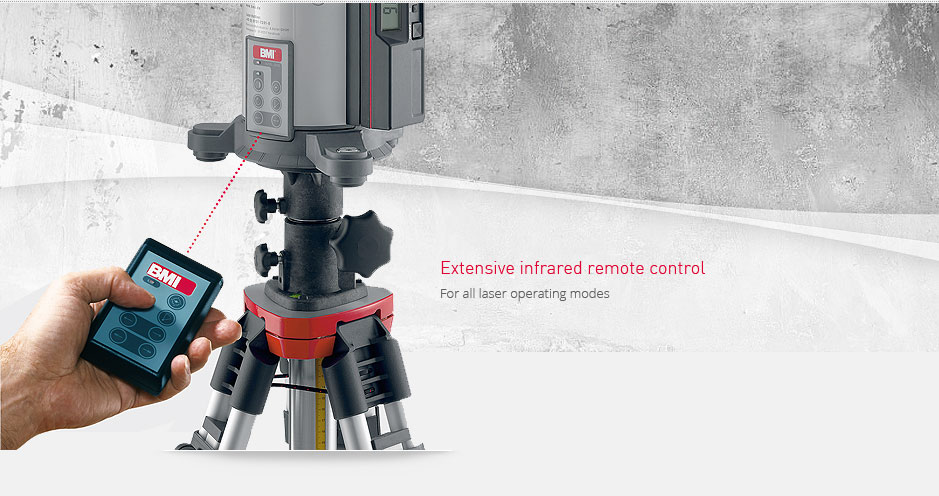

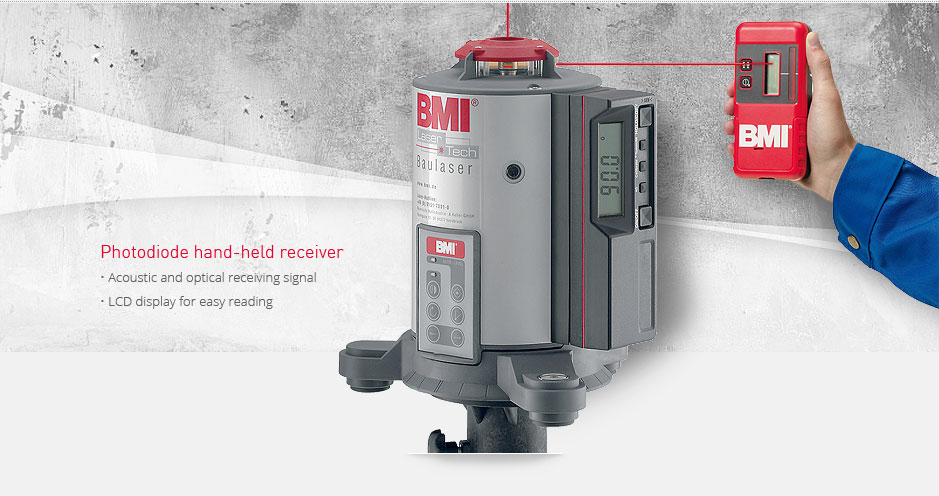

  • Remote control • Hand receiver • Wall bracket • Clamp for telescopic levelling staff
  • Diagrammed operating manual • Batteries are included in the scope of delivery

RSP: The all-taken-care-of package
  • 3-year-warranty • Original inspection included
  • Quick help in case of defects

Technical Data topoMAT ipx5
  • Type of laser: red diode laser, wavelength 635 nm
  • Output: <1 mW, Laser class 2
  • Self-levelling range: ± 4 ° approximately corresponds to ± 6%
  • Accuracy: ± 2.6 mm/30 m • Levelling time: typically <30 seconds
  • Range: 300 m in diameter with receiver
  • Rotational speeds: 600/300/100 rpm
  • LLines 45° spreading: Scanning function with 15°, 30° and 45° spreading. Remote control. dot/line: slow and fast left/right
  • Power supply 3 x 1.5 Volt batteries type LR20
  • Operating period approx. 70 hours • Protection system IP55, rain-proof
  • Tripod connection size 5/8 inch • Dimensions 200 x 200 x 250 mm
  • Weight 2.3 kg

Technical data Remote Control
  • Range: up to 50 m depending on position in direction of receiver lens
  • Power supply: 9 V Block 6LR61
  • Operating period: depending on the degree of utilization

Technical Data Receiver
  • Range: approx. 200 m • Protection system: waterproof IP67 compliant
  • Power supply: 2 x 1.5 Volt AA batteries LR6
  • Operating period: depending on the degree of utilization

The BMI laser glossary (PDF) offers a good possibility to compare selected BMI construction lasers: The uniLASER, topoMAT and Nautilus models are listed here.

laser glossary (PDF)

Topomat IPX5 in action
Duration: 4min 03sek


Available designs

topoMAT IPX5 set incl. inclinometer x
topoMAT IPX5 set without inclinometer x
Inclinometer x
