9002/9042/9052

  • Type
    Beech-wood folding rule, section 2m, no. of sections 10
  • Technical characteristics
    especially effective advertising imprints
    Brass-plated spring joints
    riveted and brass-plated spring joints ensure permanent dimensional accuracy
    In yellow, white and natural colours available

9802

  • Type
    Beech-wood folding rule, section 2m, no. of sections 10
  • Technical characteristics
    Riveted joint
    Brass-plated spring joints
    riveted and brass-plated spring joints ensure permanent dimensional accuracy
    Available in white/yellow

9082

  • Type
    Beech-wood folding rule, section 2m, no. of sections 10
    Very sturdy design - professional quality
  • Technical characteristics
    Riveted joint fatigue-free
    internal joint springs
    continuous straight edge
    Available in white/yellow

9072

  • Type
    Beech-wood folding rule, section 2m, no. of sections 10
    Ideal for advertising imprints
  • Technical characteristics
    Riveted joint
    Inboard springs
    Degree scale on joint
    Available in white

8062

  • Type
    Beech-wood folding rule, section 2m, no. of sections 10
    Ideal for advertising imprints
  • Technical characteristics
    Riveted joint
    Interior plastic springs
    Angle classification in the joint
    Available in white

9142/9143

  • Type
    Beech-wood folding rule, section 2 + 3m, no. of sections 10,
    Heavy duty - professional quality
  • Technical characteristics
    Rivet joint
    This allows good readability
    Available in natural colours

9901/9902

  • Type
    Folding rule made of glassfibre reinforced polyamide
    1 + 2 m, 10 sections
  • Technical characteristics
    Joints latch in right angle
    The graduation withstands chemicals, grease, oil etc..
    Insulating, unbreakable
    Available in yellow

1041/1042

  • Type
    Scale made of reinforced glass-fibre ABS,
    1 + 2 m, 10 sections
  • Technical characteristics
    Resistant to chemicals, grease, oil etc.
    Insulating, unbreakable
    Available in white

9003

  • Type
    Beech-wood folding rule, section 3m, no. of sections 6
    Reinforced, extremely robust design
  • Technical characteristics
    Section thickness 6.5 mm
    Section height 30 mm
    Section length 50 cm
    Available in white

9004

  • Type
    Beech-wood folding rule, section 4m, no. of sections 8
    Reinforced, extremely robust design
  • Technical characteristics
    Section thickness 6.5 mm
    Section height 30 mm
    Section length 50 cm
    Available in white

9005

  • Type
    Beech-wood folding rule, section 5m, no. of sections 10,
    Reinforced, extremely robust design
  • Technical characteristics
    Section thickness 6.5 mm
    Section height 30 mm
    Section length 50 cm
    Available in white

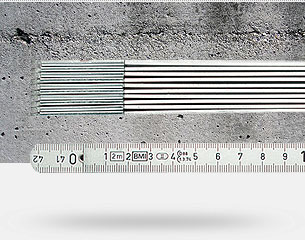

961 silver, black division

  • Type
    Scale from special aluminium,
    1 + 2 m, 10 sections
  • Technical characteristics
    Heat- and chemical resistant
    Riveted joint
    Accuracy class EG II

961 black, silver division

  • Type
    Scale from special aluminium,
    1 + 2 m, 10 sections
  • Technical characteristics
    Heat- and chemical resistant
    Riveted joint
    Accuracy class EC II

961 Left-handed scale

  • Type
    Scale from special aluminium,
    1 + 2 m, 10 sections
  • Technical characteristics
    Split a page from right to left
    Heat- and chemical resistant
    Riveted joint
    Accuracy class EC II

962/963

  • Type
    Rules, flexible stainless steel
  • Technical characteristics
    Cross section 13 x 0.5 mm or 18 x 0.5 mm
    100 mm up to 3000 mm long
    Heat- and chemical resistant
    Accuracy class EC II
    Available in different partition images

966

  • Type
    Rules made of flexible stainless steel
  • Technical characteristics
    Cross section 30 x 1 mm
    300 mm up to 3000 mm long
    Heat- and chemical resistant
    Accuracy class EC II
    Available in different partition images

427

  • Type
    Roller scale made of stainless steel, painted white, 0.5 + 1 m
  • Technical characteristics
    Tape rolls out on its own, very rigid
    Rolled up scale is very compact Ø approx. 50 mm
    Cross section 16 x 0.2 mm
    Accuracy class EC II

760/761 Vernier Calipers

  • Type
    Calipers with locking screw according to DIN 862
  • Technical characteristics
    Stainless steel
    Satin-chromed graduation
    Measuring range 150 to 300 mm

770 Digital Caliper

  • Type
    Digital Calipers acc. to DIN 862 with locking screw
  • Technical characteristics
    Stainless steel
    Satin-chromed graduation
    Measuring range 200 mm

763 Depth gauge

  • Type
    Depth Gauges According to DIN 862 with locking screw
  • Technical characteristics
    Stainless steel
    Satin-chromed graduation
    Measuring range 150 mm

765 External Micrometer

  • Type
    External Micrometer according to DIN 863-1 with a locking lever and a ratchet
  • Technical characteristics
    Satin-chromed
    Measuring surfaces made of hardened alloy
    Measuring range 0 to 25 mm and 25 mm to 50 mm

766 Dial Gauge

  • Type
    Dial Gauge according to DIN 878
  • Technical characteristics
    Clamp Ø 8 mm
    1/100 - Reading
    Measuring range 10 mm

768 Protractor

  • Type
    Protractor with a locking screw
  • Technical characteristics
    Satin-chromed graduation
    Ø Scale 120 mm / leg length 150 mm or
    Ø Scale 200 mm / leg length 300 mm
